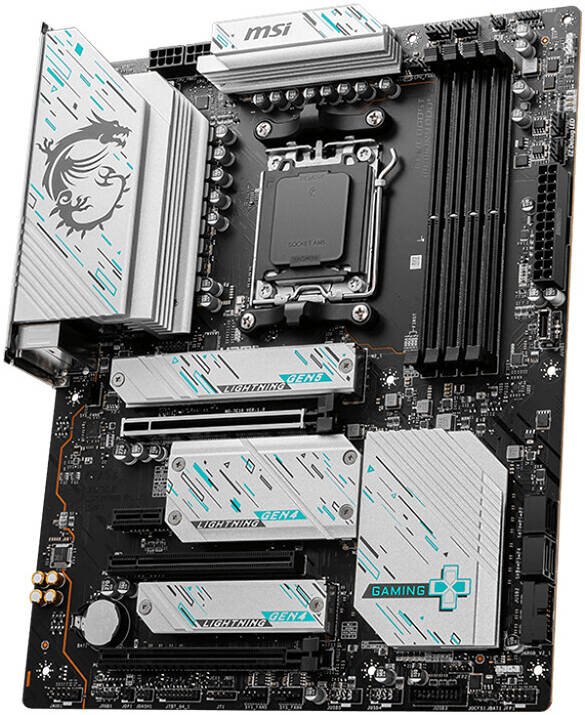

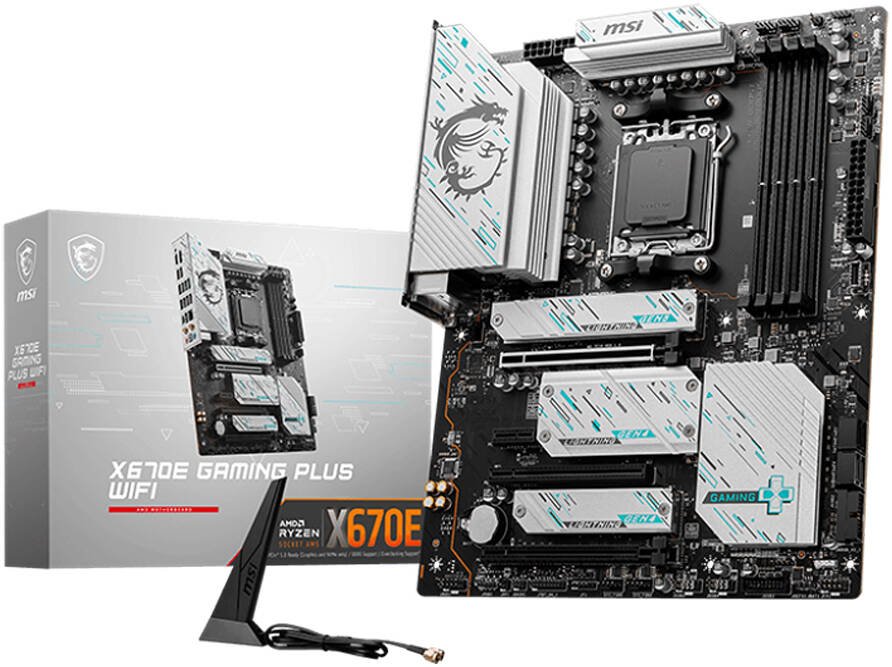

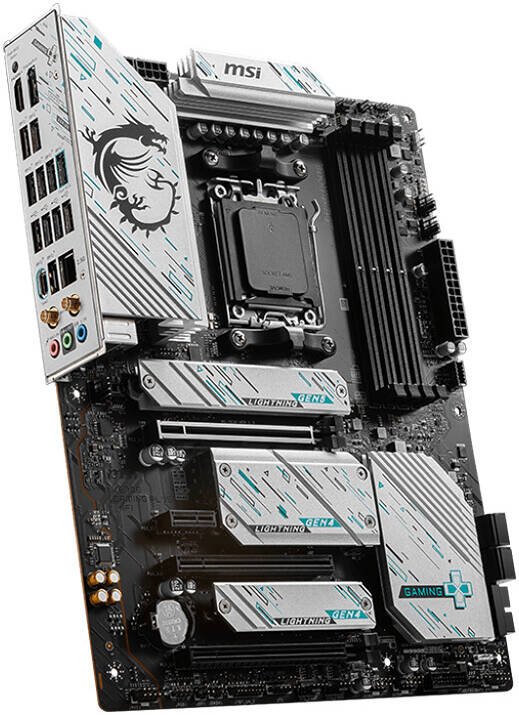

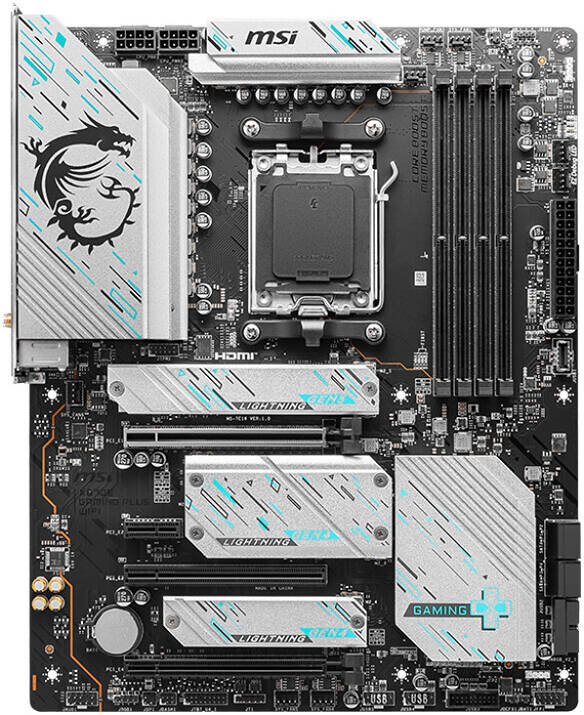

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard, AMD X670 Chipset, 4x DDR5 UDIMM / 192GB Max, Wi-Fi 6E / BT 5.3, 2.5Gbps LAN, 4x M.2, 3x PCI-E x16, USB 3.2 Gen2 Type C, 1x HDMI, 1x DP | 911-7E16-003

ChipsetAMD X670CPUSupports AMD Ryzen™ 8000/7000 Series Desktop Processors, Socket AM5Memory4x DDR5 UDIMM, Maximum Memory Capacity 192GB, Memory Support DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz, Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz, 1DPC 2R Max speed up to 6400+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 5400+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports AMD EXPO™Onboard Graphics1x HDMI™ (Support HDMI™ 2.1, maximum resolution of 4K 60Hz*), 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*) *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot3x PCI-E x16 slot (Supports x16/x1/x4), 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 3.0 supports up to x1 (From CPU), PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)Storage4x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices), 4x SATA 6G, Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 for M.2 NVMe storage devicesUSB4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Rear), 4x USB 3.2 Gen1 Type A (Front), 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear), 1x USB4 card connector (JTBT_U4_1, supports RTD3)LANRealtek® RTL8125BG 2.5Gbps LANWireless LAN & BluetoothAMD Wi-Fi 6E (The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/5GHz or 6GHz* bands, Supports 802.11 a/b/g/n/ac/ax, Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.AudioRealtek® ALC897 Codec, 7.1-Channel High Definition AudioInternal IO1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports, 1x USB4 card connector (JTBT_U4_1, supports RTD3)LED Feature4x EZ Debug LEDBack Panel PortsDisplayPort, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0 (Type-A), 2.5G LAN, Flash BIOS Button, HDMI™, USB 3.2 Gen 2x2 20Gbps (Type-C), Wi-Fi / Bluetooth, Audio ConnectorsOperating SystemSupport for Windows® 11 64-bit, Windows® 10 64-bitPCB InfoATX, 243.84mmx304.8mm
