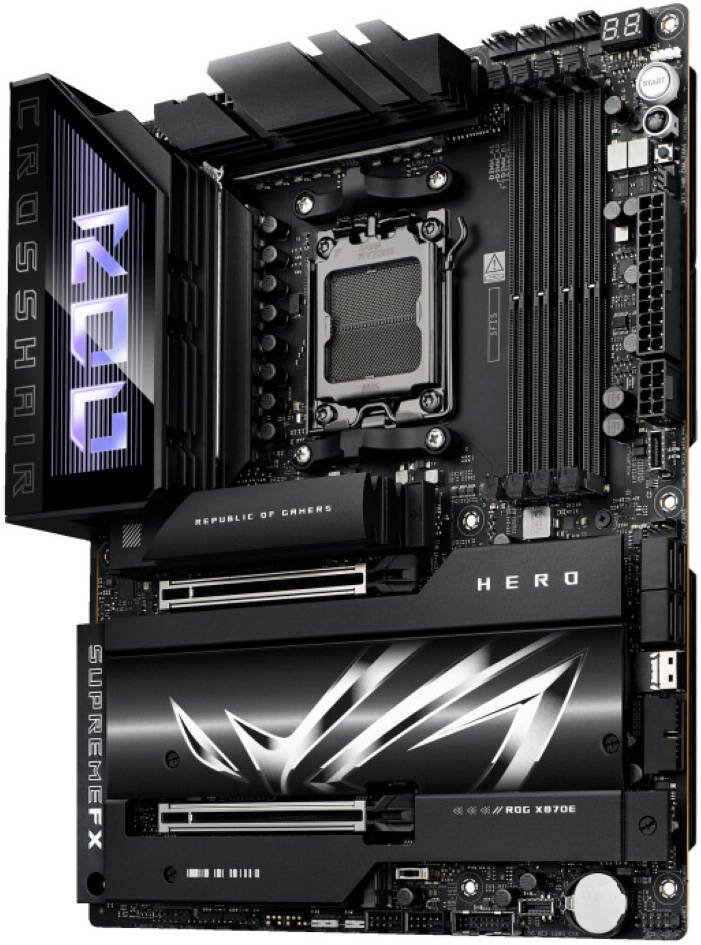

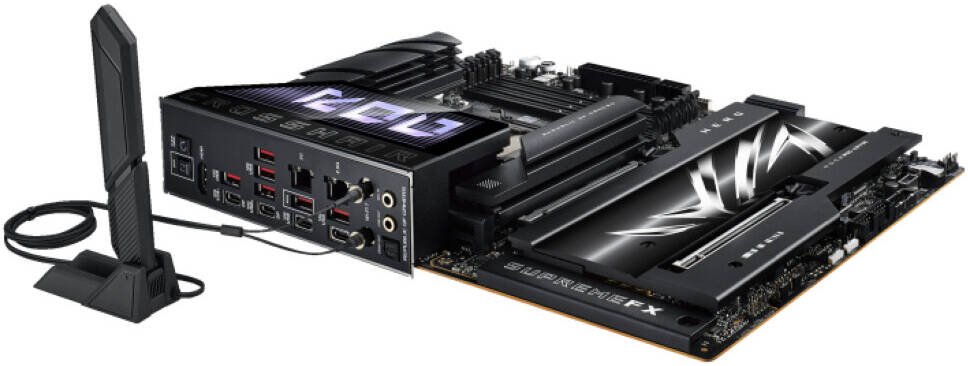

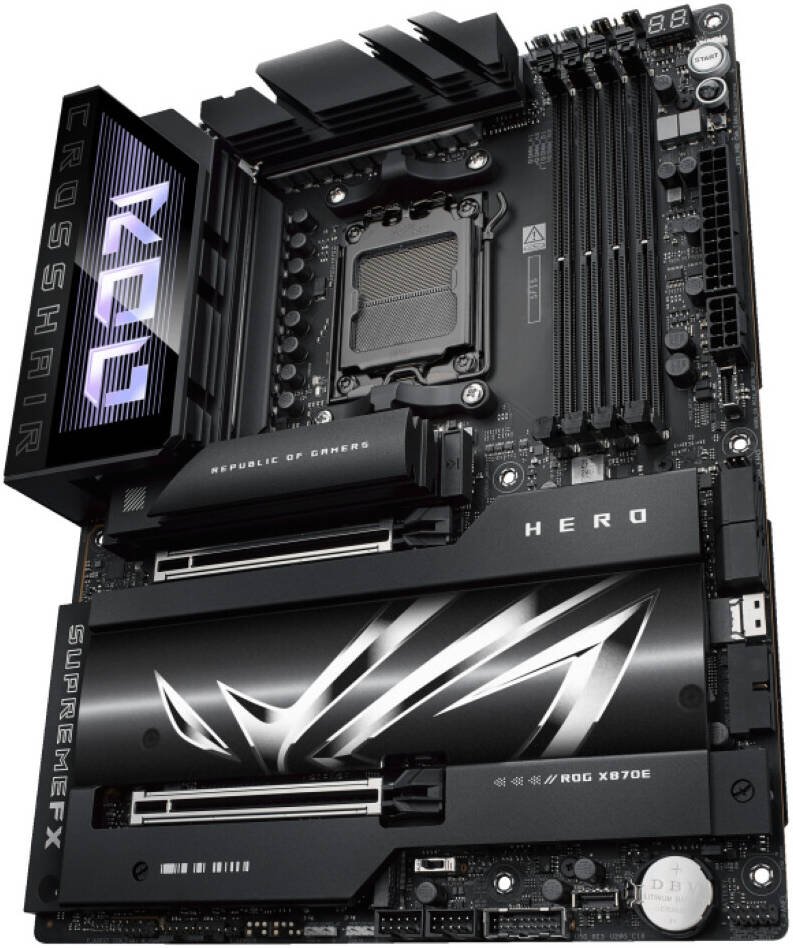

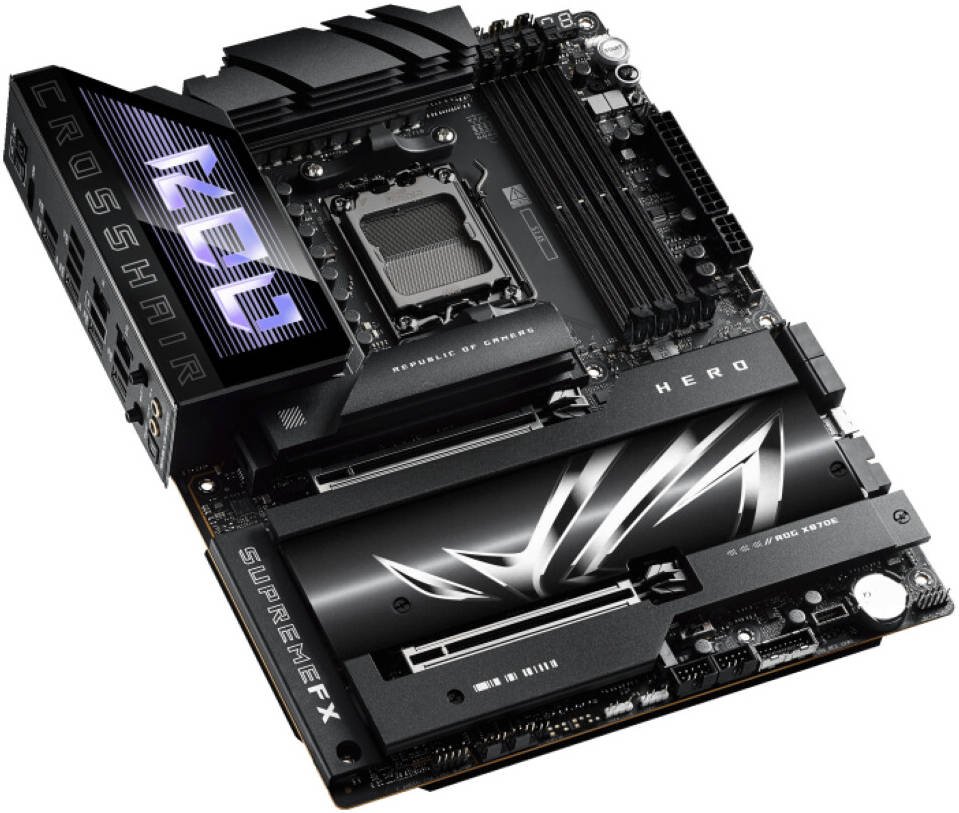

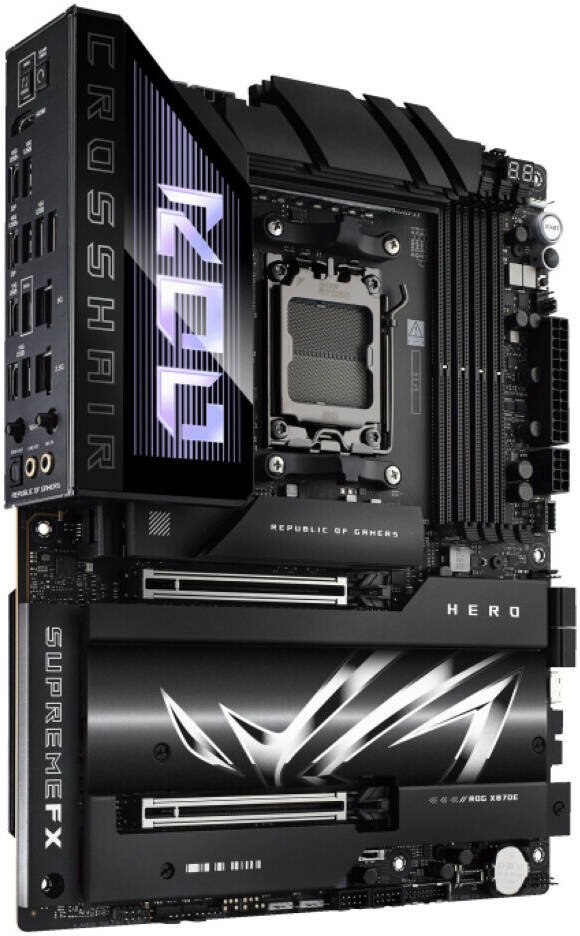

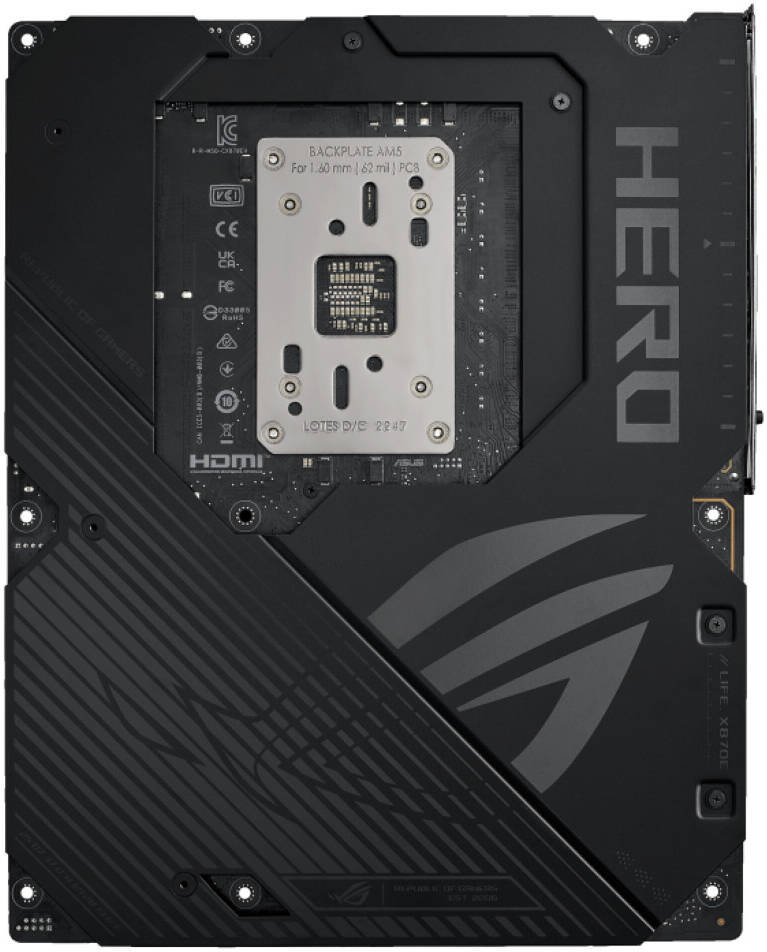

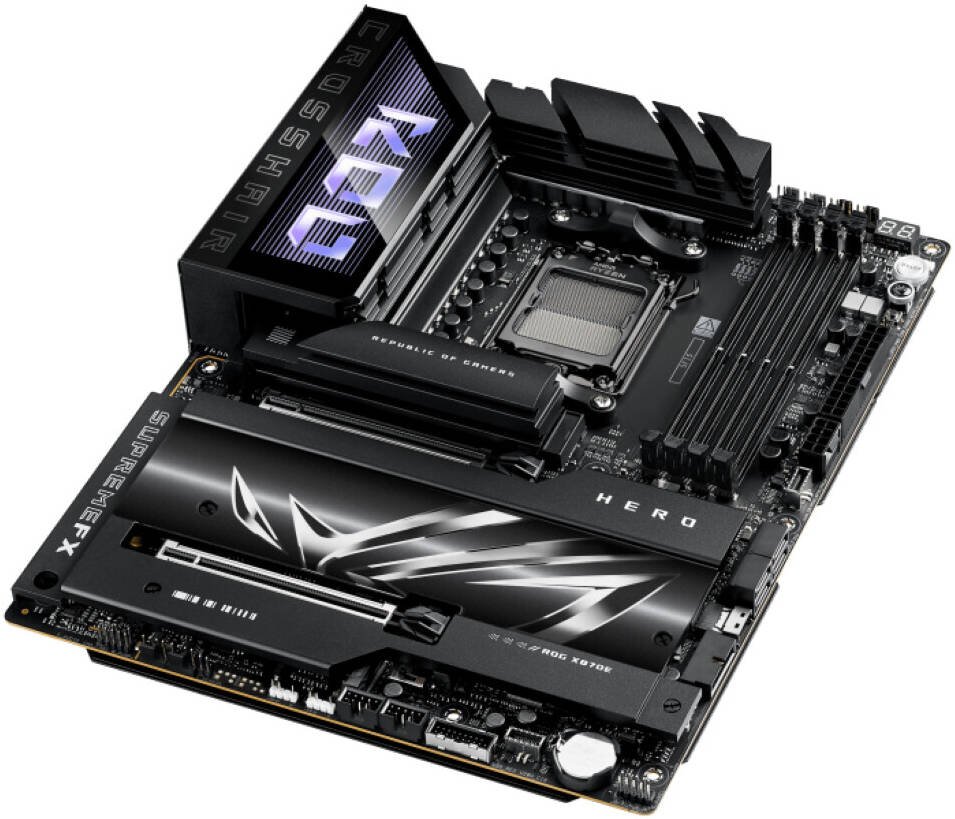

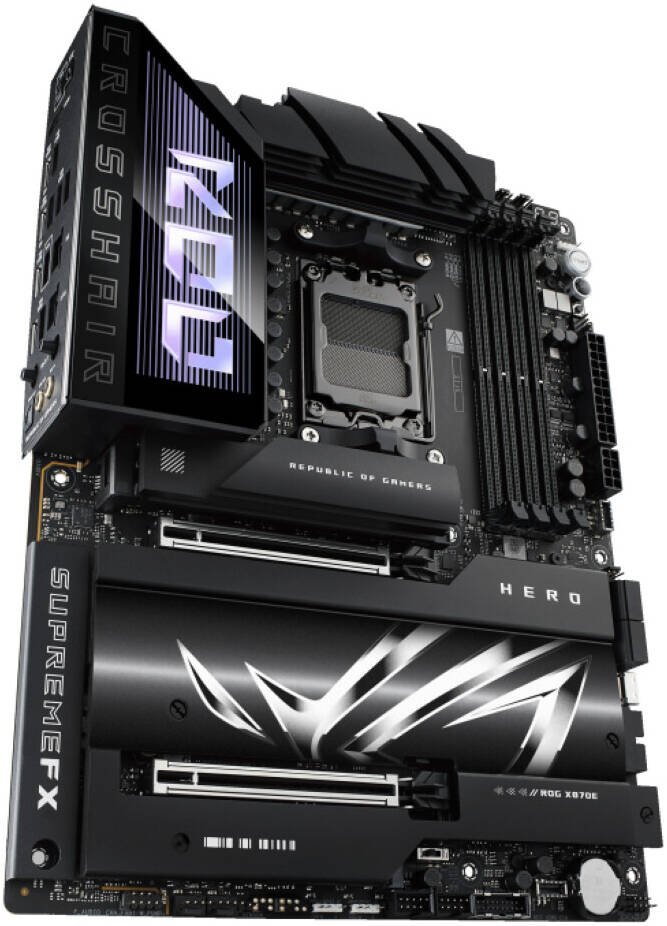

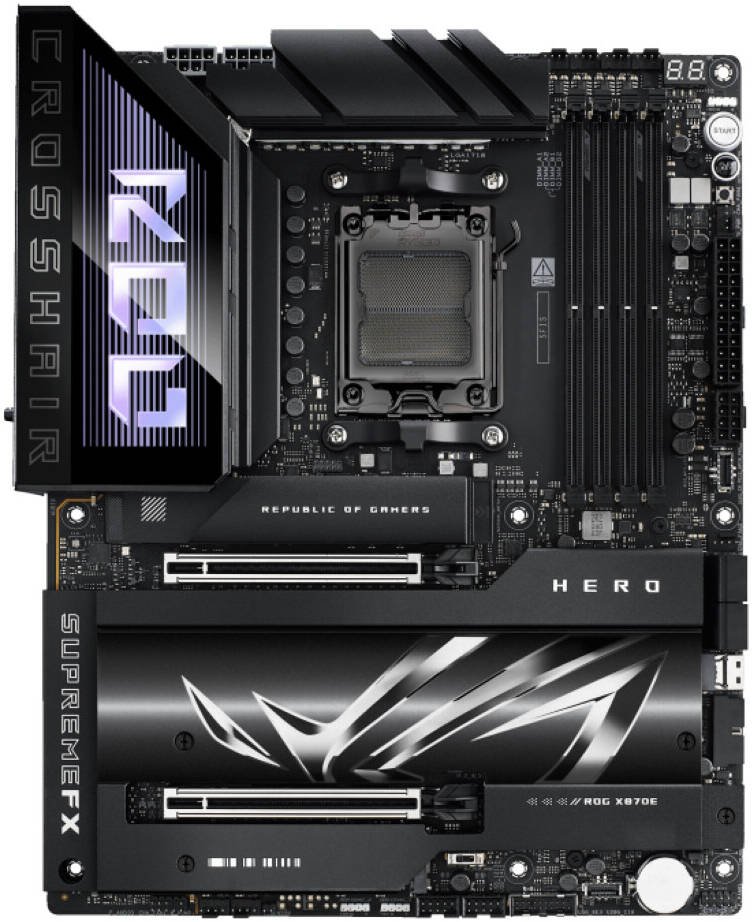

ASUS ROG CROSSHAIR X870E HERO, AMD AM5 Motherboard, DDR5 192GB Max Support EXPO, AI Intelligence, Wi-Fi 7, 2 x USB4 Ports, Overclocking Support | 90MB1IE0-M0EAY0

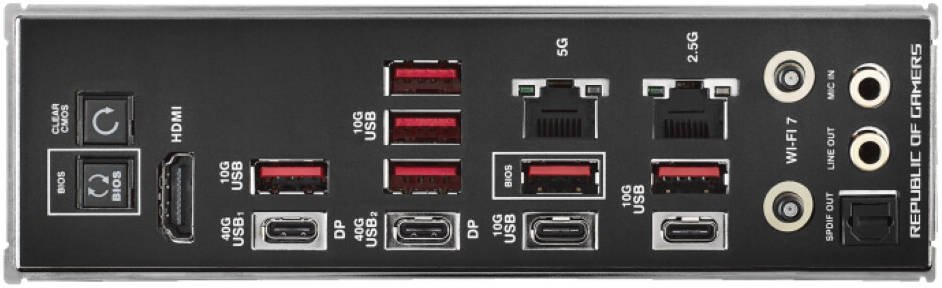

CategorySpecificationsCPUAMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors**Refer to ASUS support for CPU support list.ChipsetAMD X870EMemory4 x DIMM slots, max. 192GB, DDR5Supports up to 8200+MT/s (OC) with Ryzen™ 9000, 8600+MT/s (OC) with Ryzen™ 8000, 8000+MT/s (OC) with Ryzen™ 7000ECC and Non-ECC, Un-buffered Memory*Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™)NitroPath DRAM TechnologyASUS Enhanced Memory Profile (AEMP)*Refer to CPU/Memory Support list on ASUS support page for details.Graphics1 x HDMI™ port*2 x USB4® (40Gbps) ports support USB Type-C® display outputs***Supports 4K@60Hz as specified in HDMI 2.1.**Supports max. 4K@60Hz as specified in DisplayPort 1.4aExpansion Slots2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)AMD Ryzen™ 8700, 8600, & 8400 Series: 2 x PCIe 4.0 x16 slotsAMD Ryzen™ 8500 & 8300 Series: 2 x PCIe 4.0 x16 slots *Refer to PCIe bifurcation table on the support site.StorageSupports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000: 3 x M.2 slots support PCIe 5.0 x4 modeAMD Ryzen™ 8000: 1 x M.2 slot supports PCIe 4.0 x4 mode, others not supported 4 x SATA 6Gb/s ports*AMD RAIDXpert2 Technology supports both PCIe and SATA RAID configurations.Ethernet1 x Intel® 2.5Gb Ethernet1 x Realtek 5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 7 (802.11be), 2x2 Wi-Fi 7 supports 2.4/5/6GHz frequency band**Bluetooth® v5.4***USBRear USB (Total 10 ports)2 x USB4® (40Gbps) ports8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)Front USB (Total 10 ports)1 x USB 20Gbps Type-C®1 x USB 20Gbps connector 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsAudioROG SupremeFX 7.1 Surround Sound CODEC ALC4082*Supports 32-Bit/384 kHz playback on front panelESS® ES9219 QUAD DAC*Requires chassis with HD audio module for 7.1 Surround Sound output.Back Panel I/O Ports2 x USB4® (40Gbps) ports8 x USB 10Gbps ports1 x HDMI™ port1 x Intel® 2.5Gb Ethernet port1 x Realtek 5Gb Ethernet port2 x Gold-plated audio jacks1 x Optical S/PDIF out portInternal I/O Connectors1 x 4-pin CPU Fan header4 x 4-pin Chassis Fan headers1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors5 x M.2 slots4 x SATA 6Gb/s ports2 x USB 20Gbps connectorsSpecial FeaturesExtreme OC Kit, ASUS Q-Design, Aura Sync, ASUS Thermal Solution, ASUS EZ DIYSoftware FeaturesROG Exclusive Software, ASUS Exclusive Software, UEFI BIOS featuresBIOS256Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessories1 x ASUS WiFi Q-Antenna, 4 x SATA 6Gb/s cables, 1 x USB drive with utilities and drivers, 1 x Quick start guideOperating SystemWindows® 11Form FactorATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
