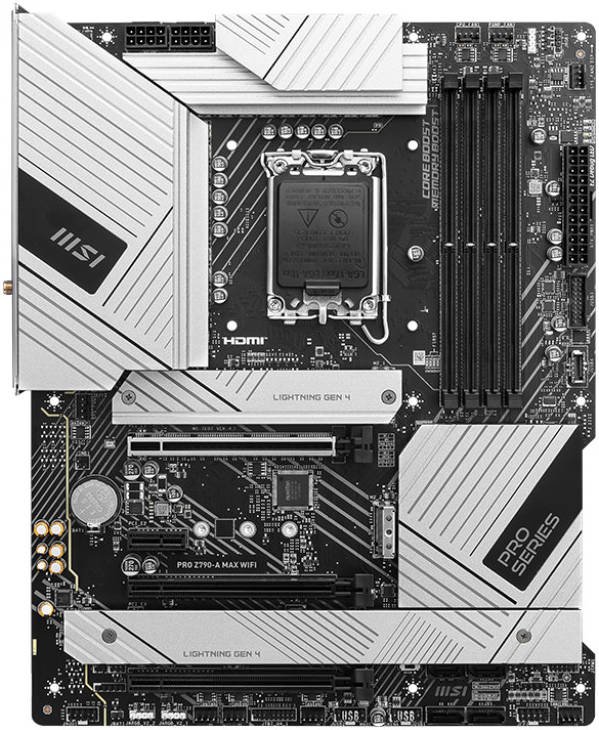

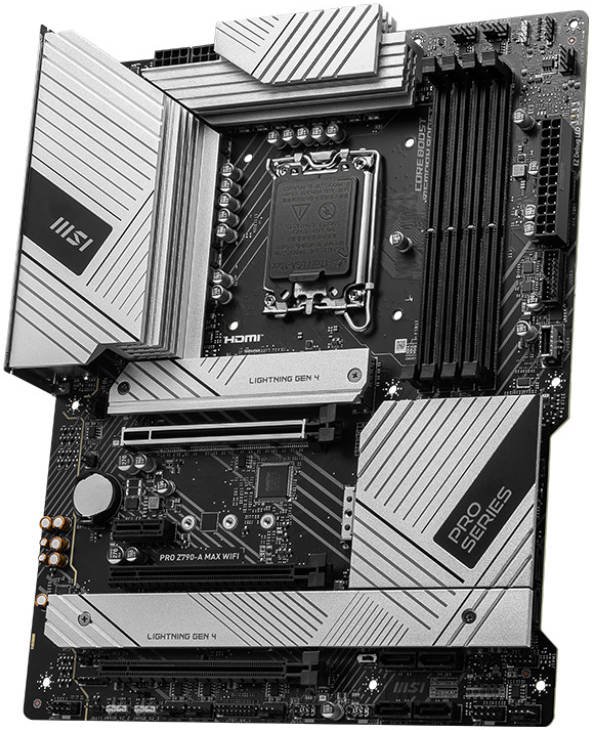

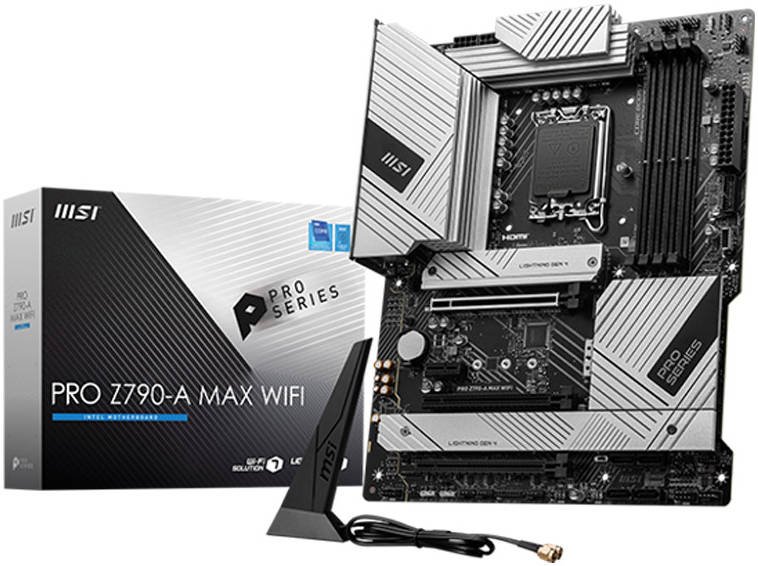

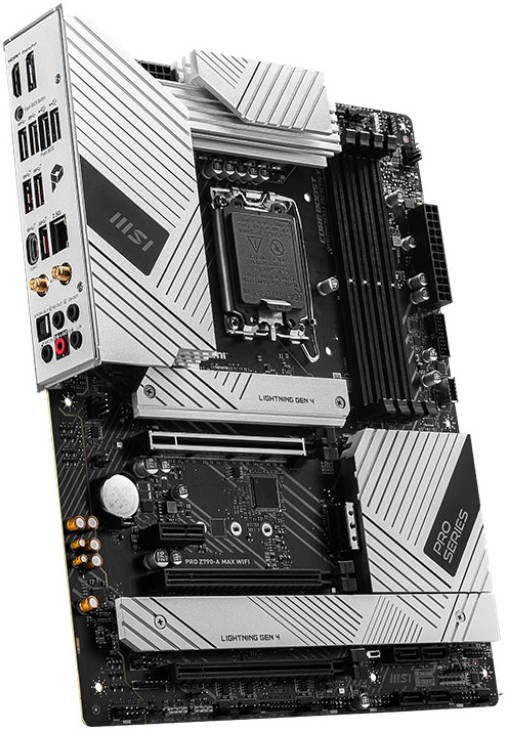

MSI PRO Z790-A MAX WIFI LGA 1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5 UDIMM 192GB Max Capacity, Wi-Fi 7 / BT v5.4, 4x M.2, 3x PCI-E x16, 1x HDMI, USB 3.2 Gen2 Type-C | 911-7E07-014

- Specifications- - - ChipsetIntel Z790- CPUSupports Intel Core 14th/13th/12th Gen, Intel Pentium Gold, and Celeron Processors- LGA 1700- Memory4x DDR5 UDIMM slots, Maximum Memory Capacity: 192GB- Memory Support: 7800+(OC)/7600(OC)/.../4800(JEDEC) MHz- Supports Intel XMP 3.0 OC, Dual-Controller Dual-Channel mode- Supports non-ECC, un-buffered memory- Onboard Graphics1x HDMI 2.1 with HDR (max resolution 4K 60Hz), 1x DisplayPort (max resolution 8K 60Hz)- *Available only on processors featuring integrated graphics. Graphics specifications may vary based on CPU.- Slots3x PCIe x16 slot, 1x PCIe x1 slot- PCIe Configuration: PCIe 5.0 x16, PCIe 3.0 x1, PCIe 4.0 x4, PCIe 3.0 x1- Storage4x M.2 slots, Supports PCIe 4.0 x4/SATA 6Gb/s, Supports various device sizes- 6x SATA 6G ports- RAIDSupports RAID 0, RAID 1, RAID 5, RAID 10 for SATA and M.2 NVMe storage devices- USB2x USB 2.0 (Rear), 4x USB 2.0 (Front)- 2x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front)- 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear)- LAN & WirelessIntel 2.5Gbps LAN- Wi-Fi 7 (pre-installed in M.2 Key-E slot), Supports various Wi-Fi standards, Supports Bluetooth 5.4- AudioRealtek ALC4080 Codec, 7.1-Channel USB High Performance Audio, S/PDIF output- Internal IOVarious power connectors, fans, system connectors, audio, RGB LED connectors, USB ports, TPM header, etc.- LED Features4x EZ Debug LED- Back Panel PortsDisplayPort, USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, Audio Connectors, HDMI, Flash BIOS Button, Various USB ports- Operating System SupportSupport for Windows 11 64-bit- - PCB InfoATX Form Factor, 243.84mm x 304.8mm
