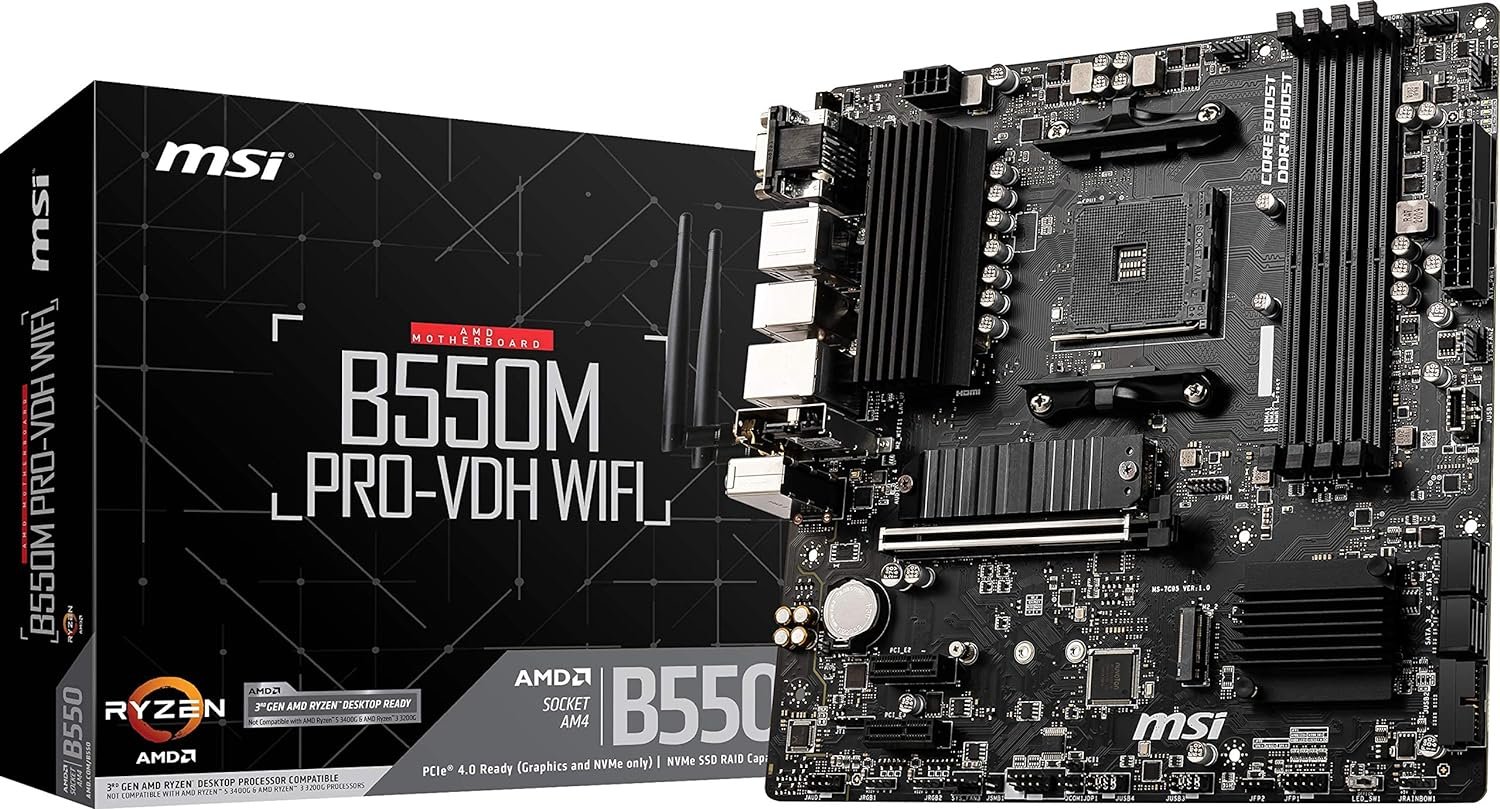

MSI MB B550M PRO VDH WIFI DDR4

DetailsChipset: AMD B550Dimensional format: Micro-ATX format (244 mm x 244 mm)Processor Support: 3rd Gen AMD Ryzen ™ processors, and future AMD Ryzen ™ processors with BIOS updateProcessor socket: AM4Memory position: 4x DDR4Memory support:Supports DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDECSupports DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 + MHz by A-XMP OC MODEMax. RAM size: 128 GBSupport for memory type: DDR4Dual channel memory architectureSupports non-ECC UDIMM memorySupports ECC UDIMM memorySupports un-buffered memoryGraphics card: based on the processor1x VGA port, supports resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz1x DisplayPort, supports a maximum resolution of 4096x2160 @ 60Hz1x HDMI port, supports a maximum resolution of 4096x2160 @ 24HzSound card:Realtek® ALC892 CodecNetwork card:1x Realtek® 8111HN Gigabit LAN controllerIntel® Wireless-AC 3168Bluetooth 4.2RAID controller:Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devicesExpansion slots:1x PCIe 4.0/3.0 x16 slot (PCI_E1)2x PCIe 3.0 x1 slotsSATA:4x SATA 6Gb/s portsM.2:2x M.2 slots (Key M)USB:rear USB ports (total 6)2x USB 2.0 ports4x USB 3.2 Gen 1 5Gbps Type-A portsfront USB ports (total 7)1x USB 3.2 Gen 1 5Gbps Type-C port2x USB 3.2 Gen 1 5Gbps ports4x USB 2.0 portsInternal ports:1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors2x M.2 slots (M-Key)1x USB 3.2 Gen 1 5Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector3x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Serial port connector1x Chassis Intrusion connector2x 4-pin RGB LED connectors2x 3-pin RAINBOW LED connectors1x TPM module connector1x Clear CMOS jumperExternal ports:VGAPS/2 Keyboard/Mouse1x LANFlash BIOS ButtonDisplayPortHDMI2x USB 2.04x USB 3.2 Gen 1 5Gbps Type-AWi-Fi Antenna connectors3x Audio jacks
