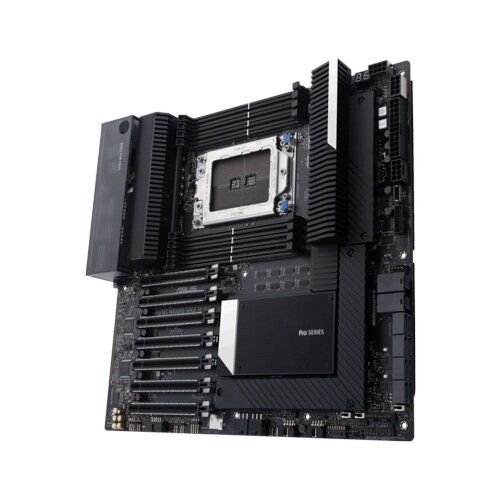

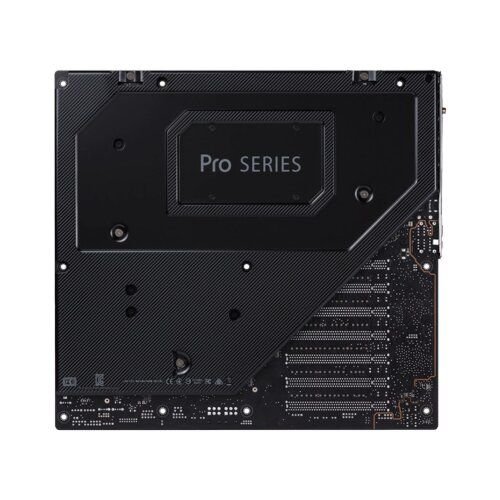

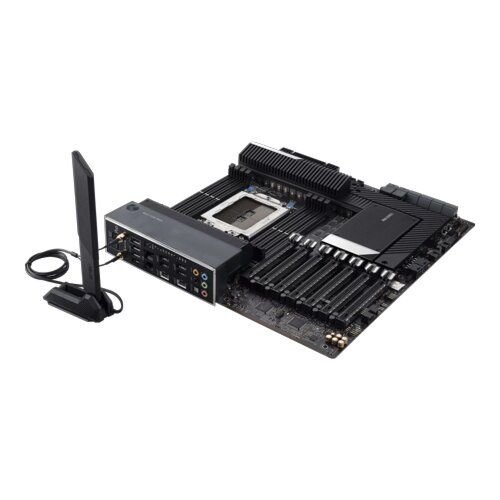

ASUS MB PRO WS WRX80E-SAGE SE WIFI II-AE

ModelPro WS WRX80E-SAGE SE WIFI IICPUAMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO Series Processors** Refer to www.asus.com for CPU support list.ChipsetAMD WRX80 ChipsetMemory8 x DDR4 8 x DIMM, Max. 2048GB, DDR4 Non-ECC and ECC Unbuffered DIMM*8 x DIMM, Max. 2048GB, DDR4 ECC R-DIMM and LR-DIMM*8 Channel Memory Architecture* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.Expansion Slots AMD Ryzen™ Threadripper™ PRO Series Processors7 x PCIe 4.0/3.0 x16 slot(s)** Support PCIe bandwidth bifurcation for RAID on CPU function.Multi-GPU SupportSupports NVIDIA 4-Way/3-Way/2-Way SLI® Technology StorageTotal supports 3 x M.2 slots and 8 x SATA 6Gb/s portsAMD Ryzen™ Threadripper™ PRO Series ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*AMD WRX80 ChipsetM.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*4 x SATA 6Gb/s portsASMedia ASM1061 Controller4 x SATA 6Gb/s portsSupports NVMe RAID configurations via M.2 storages*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.Ethernet1 x Intel® X550-AT2 dual 10Gb EthernetWireless & BluetoothWi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries.** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.USBRear USB (Total 10 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (suppport USB Type-C®)1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioRelatek ALC4080 7.1 Surround Sound High Definition Audio CODEC- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackBack Panel I/O Ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)1 x Wi-Fi Module2 x Intel® X550-AT2 dual 10Gb Ethernet ports5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS buttonInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)6 x 4-pin Chassis Fan header(s)1 x VRM heatsink Fan header1 x Chipset Fan headerPower related1 x 24-pin Main Power connector2 x 8-pin +12V Power connector2 x 6-pin PCIe Graphics Card connector1 x 8-pin PCIe Power connectorStorage related3 x M.2 slots (Key M)8 x SATA 6Gb/s ports2 x U.2 slotsUSB1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsBMC Related1 x BMC switch1 x IPMI switch1 x Messange LED header1 x Micro SD card socket2 x LAN LED header(s)1 x Location LED header1 x Location button header1 x PSU_SMB header1 x SMART_PSU switch1 x VGA switch1 x VGA header1 x VPP_I2C headerMiscellaneous1 x COM Port header1 x FlexKey button1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x Start button1 x 20-3 pin System Panel header with Chassis intrude function1 x RTC Battery header1 x Thermal Sensor header
